1. Introduction

Building energy consumption accounts for approximately 40% of global energy use, surpassing the combined consumption of the industrial and transportation sectors. More than half of this energy is expended on heating, ventilation, and air conditioning systems^[1-4]. Consequently, enhancing building energy efficiency has become an urgent priority, drawing increasing attention to the development of smart thermal management materials^[5,6]. Among these, thermochromic smart windows, particularly those based on poly(N-isopropylacrylamide) (PNIPAm), have attracted significant interest because of their ability to regulate solar heat gain in response to temperature fluctuations^[7,8]. For an ideal smart window, it is critical to achieve a substantial difference in solar energy transmission at temperatures above and below the response temperature (T_C), thereby enabling effective solar energy modulation (ΔT_sol). At the same time, the window must maintain high visible light transmittance (380-780 nm) to ensure sufficient indoor illumination^[3,9]. However, achieving both high ΔT_sol and high visible light transmittance (T_lum) in the activated state remains a considerable challenge.

Conventional PNIPAm-based systems often show a trade-off between these parameters, as increasing ΔT_sol usually leads to a reduction in T_lum, which can compromise indoor visual comfort, a factor that directly affects occupant well-being and productivity^[10-12]. To address this issue, Fang et al. enhanced the infrared modulation capability (ΔT_IR) and reduced visible light blocking by tuning the size of PNIPAm/2-aminoethylmethacrylate hydrochloride microparticles, achieving an overall ΔT_sol of 81.3%^[13]. Zhou et al. investigated the influence of PNIPAm film thickness on smart window performance and reported that thinner films improve T_lum in the activated state^[14]. However, this approach also increases infrared transmittance (T_IR), which diminishes overall effectiveness. Yang et al. integrated antimony-doped tin oxide nanocrystals with different levels of fluorine doping into a poly(N-isopropylacrylamide)-chitosan hydrogel, resulting in a prototype smart window with rapid photothermal response, high visible light transmittance, and excellent near-infrared shielding performance^[15]. Although these advances have considerably improved PNIPAm-based smart window technologies, achieving a balance between high ΔT_sol and high T_lum in the activated state remains a significant challenge.

In this study, we introduce a dual-responsive polyacrylamide/PNIPAm/indium tin oxide (PPI) composite film, in which PNIPAm microgels and indium tin oxide (ITO) particles are incorporated into a polyacrylamide (PAm) hydrogel matrix. This design achieves a high Tlum in the activated state while simultaneously enhancing ΔT_IR. As illustrated in Figure 1, ITO, a transparent conductive oxide, exploits its infrared reflectance and photothermal properties to improve infrared modulation and provide light-responsive functionality, even though its primary applications lie in other technological fields^[16-18]. The PNIPAm microgels undergo reversible transmittance changes across the T_C, enabling thermally driven optical modulation, whereas PAm serves as a hydrophilic and mechanically stable framework. Consequently, the PPI composite film exhibits a balanced performance profile by combining high T_lum in the activated state with enhanced ΔT_IR compared with conventional PNIPAm systems. Under an illumination intensity of 95 mW·cm^-2, the composite film reduced the indoor temperature of simulated buildings by up to 7 °C. These results highlight a practical strategy to overcome the ΔT_sol-T_lum trade-off and demonstrate the potential of PNIPAm-based smart windows for integration into energy-efficient building systems.

Display Full Size

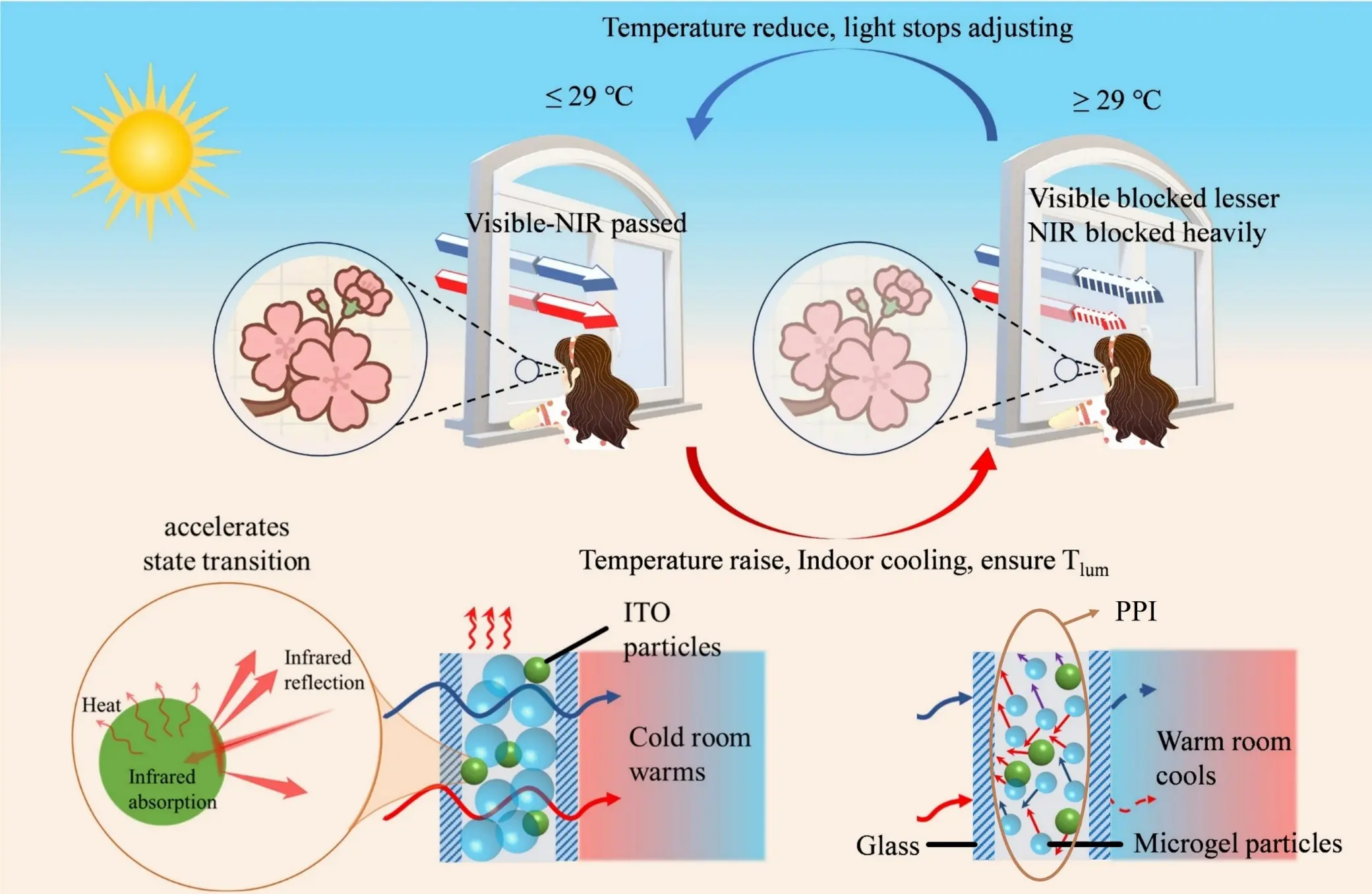

Figure 1. The working mechanism of the PPI composite film in this work. PPI: polyacrylamide/poly(N-isopropylacrylamide)/indium tin oxide.

2. Experimental Section

2.1 Materials

N-isopropylacrylamide (NIPAm, 98%), ammonium persulfate (APS, 99.99%) initiator, and acrylamide (Am, 99%) were purchased from Shanghai Macklin Biochemical Co., Ltd. (Shanghai, China). N, N’-methylenebis(acrylamide) (BIS, 99%) crosslinker, N, N, N’, N’-tetramethylethylenediamine (TEMED, 99%) catalyst, and sodium dodecyl sulfate (SDS, 98.5%) surfactant were obtained from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). Indium tin oxide (ITO, 50 nm) particles were supplied by Suzhou Youyan New Material Industry Co., Ltd. (Suzhou, China).

2.2 Synthesis of PNIPAm Microparticles

PNIPAm microparticles were synthesized via continuous feeding of NIPAm into the reaction vessel. Solution A was prepared by dissolving 1 g of NIPAm and 12 mg of BIS in 15 mL of deionized (DI) water, while Solution B was prepared by dissolving 7 g of NIPAm and 168 mg of BIS in 25 mL of DI water. SDS and APS stock solutions were prepared at concentrations of 0.19 M and 0.36 M, respectively. Subsequently, 5 mL of Solution A and 0.76 mL of 0.19 M SDS solution were added to 100 mL of DI water in the reaction vessel, which was heated to 80 °C under a nitrogen atmosphere and stirred at 700 rpm. Polymerization was initiated by adding 0.76 mL of 0.36 M APS solution. After 1 min, Solution B was introduced into the reaction vessel using a syringe pump at a constant feed rate of 200 μL·min^-1. The particle size of the resulting PNIPAm microparticles could be precisely controlled by adjusting the total feeding duration. Upon completion, a stable dispersion of PNIPAm microparticles was obtained.

2.3 Preparation of PPI hydrogel film

The PAm-PNIPAm (P-P) composite film was prepared using the PNIPAm microparticle dispersion. Am (2 g), BIS (6 mg), and APS (10 mg) were dissolved in 10 mL of the microparticle dispersion under continuous stirring in an ice-water bath until fully dissolved. Subsequently, 50 μL of TEMED was added, followed by stirring for 1 min. The resulting mixture was immediately poured into a glass mold, with film thickness controlled by adjusting the spacing between the glass plates. The mold was left undisturbed for 24 h, yielding composite hydrogel films of varying thicknesses. The PPI hydrogel film was prepared using the same procedure, with the addition of ITO particles into the mixture during the ice-water bath stage.

2.4 Characterization

The crystal structure of the ITO particles was analyzed by XRD (SmartLab SE, Rigaku, Japan), and their morphology and particle size were examined using SEM (SU8600, Hitachi, Japan). The T_C of the hydrogel films was determined by differential scanning calorimetry (DSC, Q20, TA Instruments, USA). FTIR spectra were acquired using a Nicolet 6700 spectrometer (Thermo Scientific, USA). The photothermal properties of both the ITO particles and hydrogel films were evaluated using a photothermal heating system coupled with infrared thermal imaging. The transmittance of the ITO particles and hydrogel films was measured with an in situ UV-Vis-NIR spectrophotometer (Lambda 950, PerkinElmer, USA). Additionally, the size distribution of the hydrogel particles was analyzed by dynamic light scattering (DLS, Zetasizer Nano ZS90, Malvern Instruments, UK), and their morphology was further examined using an optical microscope (BX53, Olympus, Japan).

To evaluate the practical performance of the films, a full-spectrum solar simulator (Ultra-Vitalux, 300 W, Osram, Germany) was employed to replicate sunlight exposure. The distance between the lamp and the sample was fixed at 10 cm, corresponding to an illuminated area of 100 cm². Based on the manufacturer’s irradiance specification at 0.5 m and applying the inverse-square law, the irradiance at the sample surface was calculated to be approximately 95 mW·cm^-2, effectively equivalent to 100 mW·cm^-2 (1 Sun). The temperature inside a thermally insulated cubic chamber (10 × 10 × 10 cm³, open top) was monitored using a single-channel industrial thermometer (DT1311) equipped with a TP-A200 probe. The chamber walls were constructed from 0.5 cm-thick rigid melamine insulation panels. The top cover was configured as either (i) two glass plates (15 × 15 × 0.5 cm³, glass/glass), or (ii) a glass/hydrogel/glass composite cover of the same dimensions, incorporating a hydrogel layer measuring 10 × 10 cm² with a thickness of 0.5 mm. The temperature probe was positioned at the geometric center of the cavity. The device was considered “active” when the internal temperature exceeded the PNIPAm phase-transition temperature (T_C = 29 °C) and “inactive” otherwise. The reported temperature reduction of 7 °C corresponds to the steady-state difference between the glass/glass control and the glass/hydrogel/glass configuration under identical illumination and ambient conditions.

The integral luminous transmittance, T_lum (380-780 nm), IR transmittance, T_IR (780-2,500 nm), and solar transmittance, T_sol (220-2,500 nm) were calculated according to Eqn (1):

(1)$T_{\text{lum}/\mathrm{IR}/\mathrm{sol}}=\frac{\int {\phi }_{\text{lum}/\mathrm{IR}/\mathrm{sol}}\left(\lambda \right)T\left(\lambda \right)d\lambda }{\int {\phi }_{\text{lum}/\mathrm{IR}/\mathrm{sol}}\left(\lambda \right)d\lambda }$

Where T(λ) denotes the spectral transmittance, φ_lum(λ) is the standard luminous efficiency function for photopic vision in the wavelength range 380-780 nm, and φ_IR(λ) and φ_sol(λ) represent the infrared and solar irradiance spectra, respectively, for an air mass of 1.5 (corresponding to the sun at 37° above the horizon, with a solar zenith angle of 48.2°). The relative changes in transmittance, ΔT_lum/IR/sol were calculated as follows:

(2)$\Delta T_{\text{lum}/\mathrm{IR}/\text{sol}}=T_{\text{lum}/\mathrm{IR}/\text{sol,}{20}^{\circ }C}-T_{\text{lum}/\mathrm{IR}/\text{sol,}{35}^{\circ }C}$

3. Results and Discussion

3.1 The fabrication of the composite film

The fabrication process of the composite film is illustrated in Figure 2. ITO particles were introduced into the smart window design with two objectives: (i) to significantly enhance ΔT_IR and (ii) to improve the switching speed of the film. The structural and morphological characteristics of the ITO particles were first examined by X-ray diffraction (XRD) and scanning electron microscopy (SEM), as shown in Figure S1.

Display Full Size

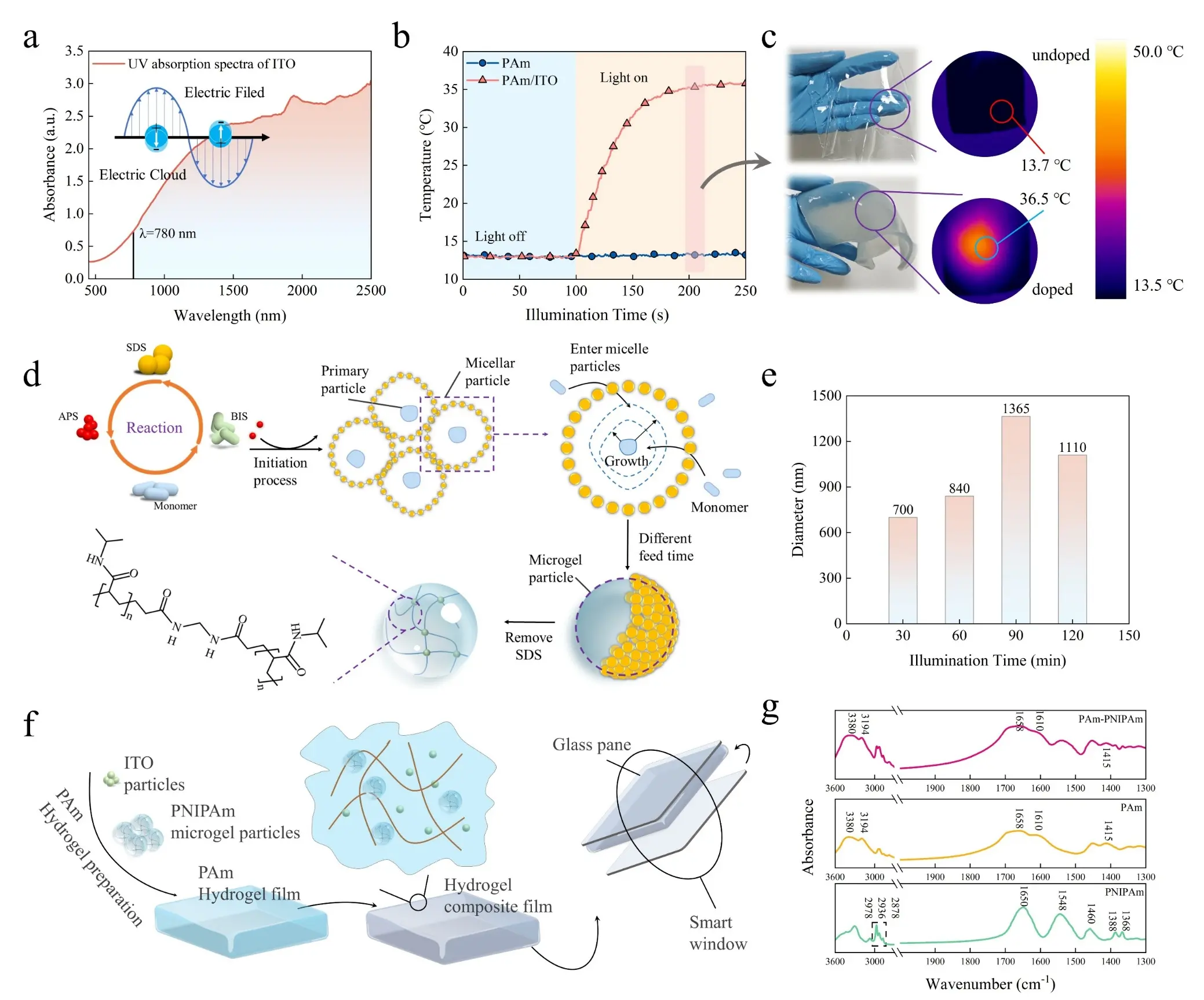

Figure 2. Characterization of ITO particles, PNIPAm microgels, and smart window films. (a) UV-vis spectrum of ITO particles; (b) Photothermal properties of ITO particles; (c) Infrared thermography of films shown in (b); (d) Continuous feeding method for PNIPAm synthesis; (e) Microgel size distribution at different feeding times; (f) Fabrication process of the smart window film. (g) FTIR spectrum of the hydrogel. ITO: indium tin oxide; PNIPAm: poly(N-isopropylacrylamide);FTIR: Fourier transform infrared spectroscopy.

As depicted in Figure 2a, the particles exhibit strong absorption in the near-infrared region, which is primarily attributed to local surface plasmon resonance induced by n-type doping^[19,20]. The inset in Figure 2a schematically illustrates this mechanism. These findings confirm the strong infrared absorption capability of the ITO particles. To evaluate their photothermal conversion performance, ITO particles were embedded into PAm hydrogel films. As shown in Figure 2b, when exposed to an irradiation intensity of 200 mW·cm^-2, the temperature of the control film without ITO remained nearly unchanged, whereas the ITO-doped film exhibited a pronounced increase. Although photothermal conversion efficiency (η) is a standard parameter for quantitatively assessing photothermal materials, the present study emphasizes the dual-responsive switching behavior enabled by ITO incorporation. The temperature evolution curves clearly demonstrate that doping with ITO particles leads to a rapid and substantial photothermal response compared with the pure hydrogel. Infrared thermal images of the films after 200 s of illumination are provided in Figure 2c.

Subsequently, thermosensitive PNIPAm microgels were synthesized. A characteristic feature of temperature-responsive PNIPAm hydrogels is that their optical scattering behavior is strongly influenced by particle size and internal structure. To ensure structural uniformity, PNIPAm microgels were prepared using a continuous feeding method. The synthesis process is illustrated in Figure 2d, where different feeding times were applied to control particle size. As shown in Figure 2e, particle size varied with feeding time, confirming that this method can reliably produce microgels of different dimensions. Optical microscopy of the sample obtained after 90 min revealed that the microgels were uniformly spherical, with an average diameter of approximately 1,300 nm (Figure S2).

Finally, ITO particles and PNIPAm microgels were incorporated into the PAm hydrogel film to construct the PPI composite film. The fabrication process is shown in Figure 2f. The chemical composition of the PAm–PNIPAm (P–P) hydrogel was verified by Fourier transform infrared (FTIR) spectroscopy (Figure 2g)^[21-24], confirming the successful synthesis of the targeted hydrogel. The integration of ITO particles and PNIPAm microgels into the PAm matrix produced a dual-responsive composite film with both thermally and optically driven modulation capabilities, thereby establishing the basis for subsequent performance evaluation.

3.2 Optimization of composite film performance

The first optimization step aimed to enhance ΔT_IR by adjusting the size of the PNIPAm microgels. Microgels with particle sizes of 700 nm, 840 nm, 1,110 nm, and 1,365 nm were synthesized, and their transmittance was measured at 25 °C and 35 °C. As shown in Figure 3a, particle size decreased with increasing temperature, with the largest particles obtained at a feeding time of 90 min. The relationship between particle size and transmittance is further illustrated in Figure 3b,c. ΔT_IR increased as particle size grew from 700 nm to 1,365 nm, reaching a maximum of 39.2% at 1,365 nm.

Display Full Size

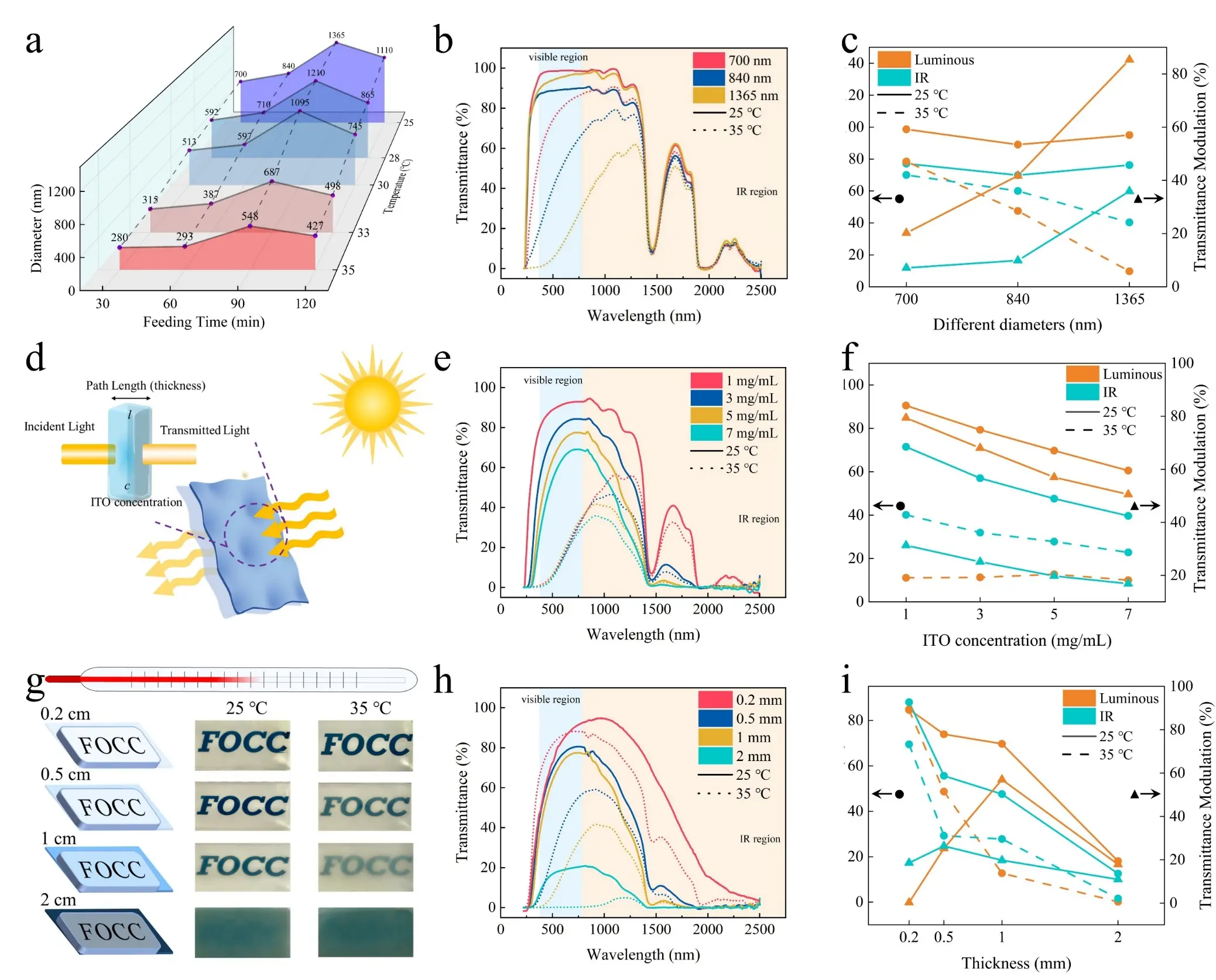

Figure 3. Performance optimization of PPI composite film. (a) Temperature-dependent diameter variation of microgels with different sizes; (b) UV-vis spectra of microgels with varying diameters at different temperatures; (c) Transmittance and modulation characteristics of microgels with varying diameters in the visible and infrared regions; (d) Schematic illustration of the effects of doping concentration and film thickness on performance; (e) UV-vis spectra of films with different doping concentrations at varying temperatures; (f) Transmittance and modulation characteristics of films with different doping concentrations in the visible and infrared regions; (g) Optical transparency of films with varying thicknesses in different thermochromic states; (h) UV-vis spectra of films with different thicknesses at varying temperatures; (i) Transmittance and modulation characteristics of films with different thicknesses in the visible and infrared regions. PPI: polyacrylamide/poly(N-isopropylacrylamide)/indium tin oxide.

This trend can be interpreted using Mie scattering theory, where the size parameter x is defined as^[13]:

(3)$x=\frac{2\pi r}{\lambda }$

where r is the particle radius and λ is the wavelength of the incident light. When the PNIPAm microgels are in the activated state, their x in the visible light region is approximately 1, resulting in low scattering efficiency in the infrared region. Effective infrared scattering occurs when the size parameter in the near-infrared (NIR) range approaches 1. For the 90 min sample, the particle diameter at 35 °C was 548 nm, yielding a size parameter in the infrared region close to 1, which explains the strongest ΔT_IR response observed.

Next, ΔT_IR was further improved by adjusting the doping concentration of ITO particles. According to the Beer-Lambert law^[25], absorbance is proportional to both the concentration of the absorbing species and the optical path length (Figure 3d). Due to the strong infrared reflectance of ITO particles, the ΔT_IR of the PPI composite film increased as the ITO concentration increased. Figure 3e,f show the solar transmittance and its variation for the PPI composite film with doping concentrations of 1, 3, 5, and 7 mg/mL. At concentrations of 5 mg/mL and 7 mg/mL, the lowest T_IR values of 47.58% and 39.67%, respectively, were achieved. However, at 7 mg/mL, T_lum was markedly reduced, potentially compromising indoor illumination and visual comfort. In contrast, the composite film with an ITO concentration of 5 mg/mL achieved a substantial enhancement in ΔT_IR while maintaining a T_lum of 69.73%, ensuring adequate visible-light transmission.

Having examined the factors governing infrared modulation, attention was then turned to T_lum, a parameter critical for both indoor brightness and external visibility. To address this, the film thickness was optimized to enhance T_lum in the activated state while maintaining sufficient ΔT_IR. Composite films with thicknesses of 0.2 mm, 0.5 mm, 1 mm, and 2 mm were prepared. Transparency changes with temperature were qualitatively assessed by placing the films over a printed-text substrate (Figure 3g). The 2 mm film exhibited complete opacity; therefore, only the 0.2 mm, 0.5 mm, and 1 mm films were further evaluated.

Figure 3h,i present the solar transmittance and its variation for these three thicknesses. The 0.2 mm film maintained high T_lum during the phase transition, but its ΔT_IR was insufficient to meet performance requirements. The 0.5 mm film achieved a well-balanced performance, with T_lum of 50% and ΔT_IR of 50.4%. In contrast, the 1 mm film caused a marked reduction in T_lum to 12.72%, falling short of the design target.

Through systematic adjustment of microgel particle size, ITO doping concentration, and film thickness, the PPI composite film achieved simultaneous enhancement of T_lum and ΔT_IR, fulfilling the targeted performance objectives for dual-responsive smart window applications.

3.3 Optical switching and response temperature of the composite film

Following the identification of 5 mg/mL as the optimal ITO concentration, its impact on photothermal performance was further investigated. Figure 4a presents a schematic illustrating the effect of doping concentration on heating efficiency, accompanied by infrared thermal images of films irradiated at 100 mW·cm^-2 for the same duration. The complete set of thermographs is provided in Figure S3. It was observed that increasing the ITO concentration resulted in a more pronounced temperature rise. Figure 4b shows the temperature–time curves of the composite films, with the heating rate k determined from the slope. The heating rate increased with ITO concentration, reaching a maximum at 5 mg/mL; beyond this point, k exhibited no further improvement, with both 5 mg/mL and 7 mg/mL yielding k = 0.04. However, the steady-state plateau temperature was slightly higher for the 7 mg/mL film. Considering the heating rate as a key photothermal parameter, these results confirm that 5 mg/mL is the optimal ITO concentration.

Display Full Size

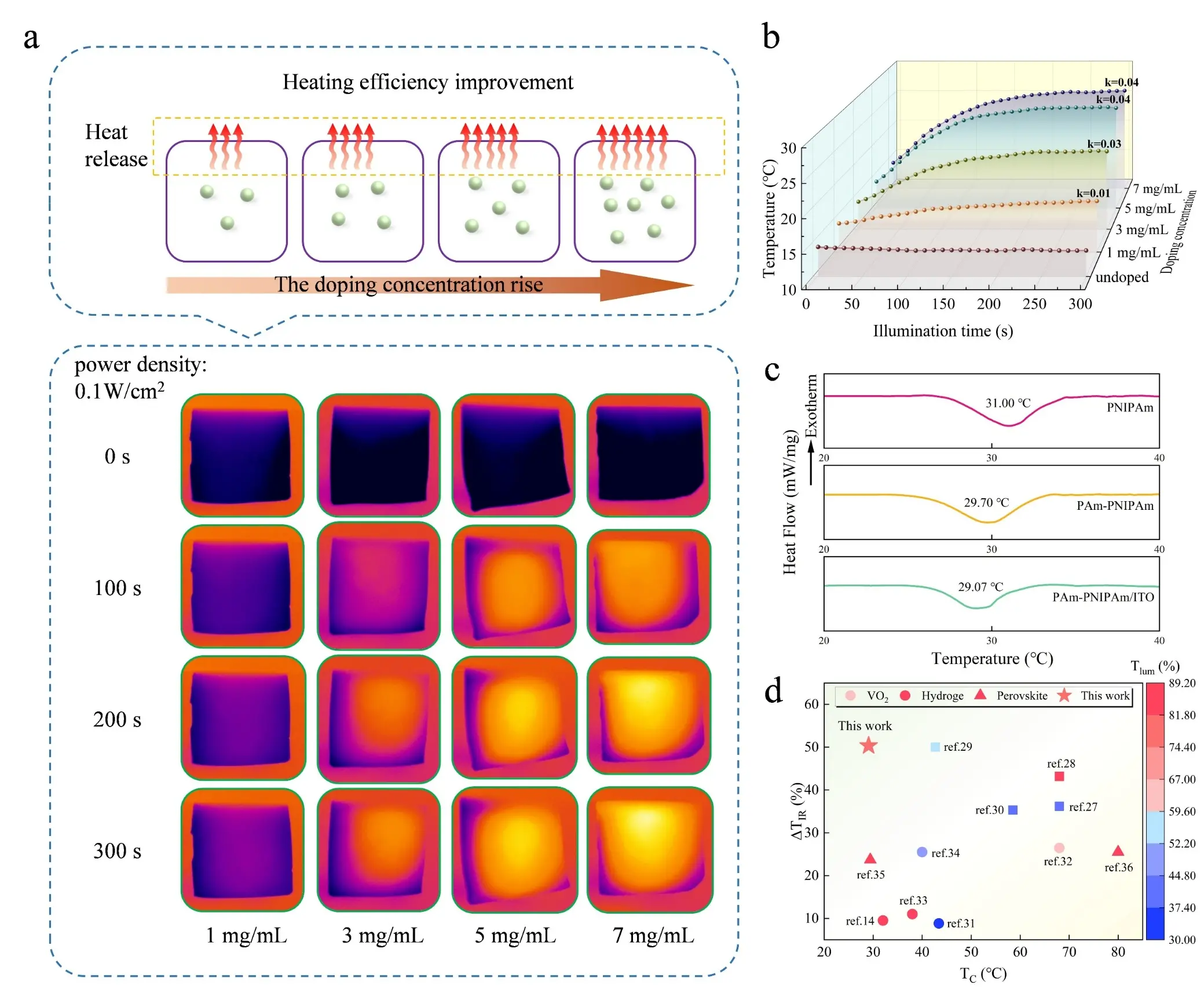

Figure 4. Optical switching behavior and T_C of the composite films. (a) Schematic illustration showing the effect of doping concentration on heating rate, along with infrared thermographs of films under equal illumination time at different doping concentrations; (b) Temperature evolution of films with varying doping concentrations under uniform illumination; (c) Critical transition temperatures of different samples; (d) Comparison of the performance of the present film with other reported smart windows, including VO₂^[27-30], hydrogel^[14,31-34], and perovskite^[35,36].

The T_C values of the films are shown in Figure 4c. PNIPAm exhibited a T_C of 31 °C, consistent with literature values^[26]. The P-P composite displayed a slightly lower T_C than pure PNIPAm hydrogels, while incorporation of ITO particles did not substantially alter the T_C, which remained at 29.07 °C. Although DSC measurements are limited to assessing thermal switching under laboratory conditions, in practical applications, the synergistic effect of thermal and light-induced switching could significantly enhance the film’s temperature control efficiency.

The combination of optimized thermochromic properties, high infrared modulation efficiency, and high T_lum provides a clear performance advantage over previously reported thermochromic systems, as illustrated in Figure 4d.

3.4 Application of the composite film

Following performance optimization, the thermal management capability and cycling stability of the PPI composite film were evaluated. Figure 5a shows a schematic of the experimental setup for assessing thermal management performance, with detailed device configurations provided in Figure S4. A thermocouple was used to monitor the internal temperature of the insulated chamber, enabling precise evaluation of the smart window’s thermal regulation capability. A control experiment without the smart window film was conducted under identical conditions for comparison. During the tests, both the distance between the lamp and the building and the lamp intensity were kept constant.

Display Full Size

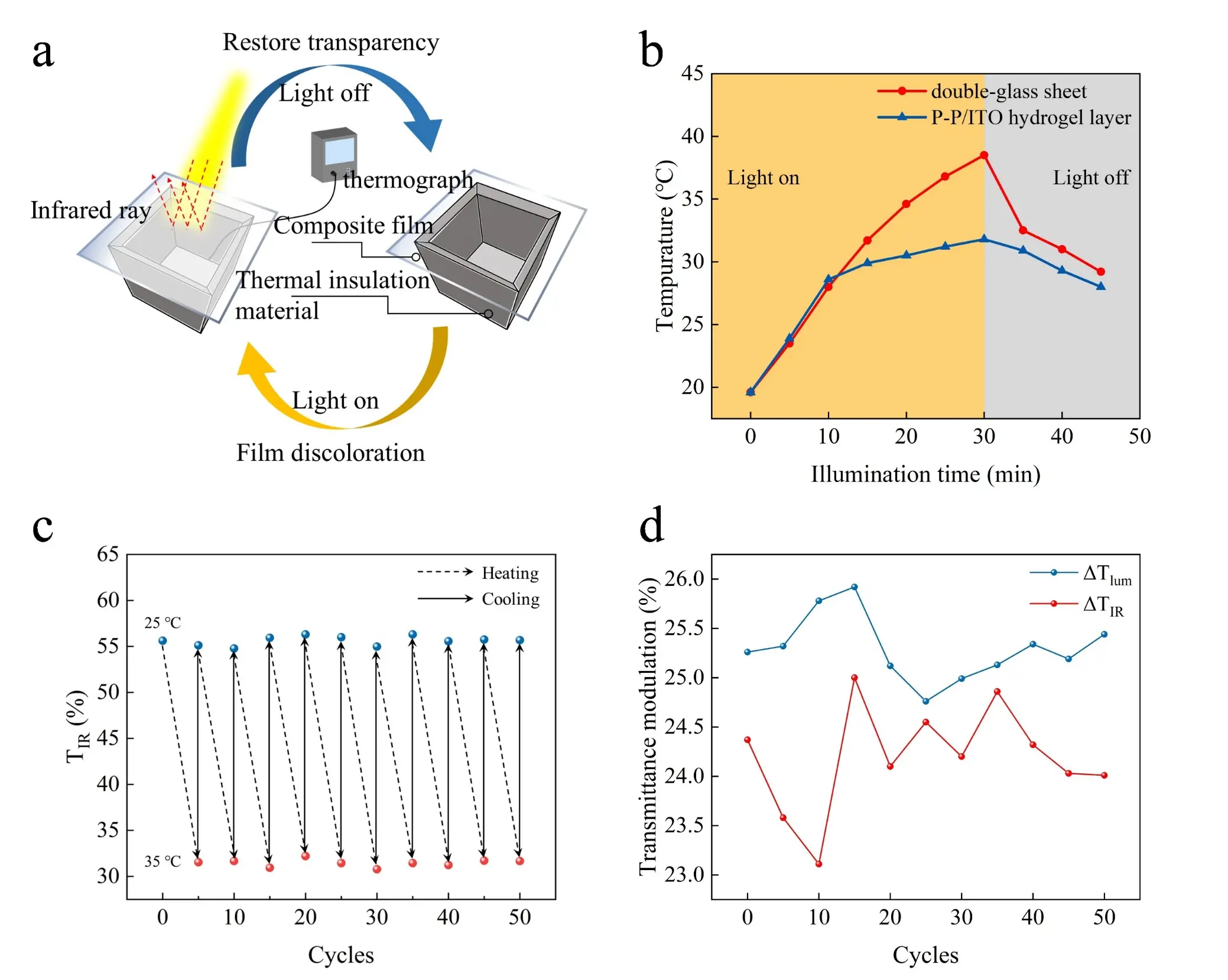

Figure 5. Application and cycling stability of the PPI composite film. (a) Schematic of the experimental setup for thermal management performance testing of the smart window device; (b) Temperature-time profile of the device during the thermal management experiment; (c, d) Cycling stability tests of the PPI composite film (1,365 nm, 5 mg/mL, 0.5 mm). PPI: polyacrylamide/poly(N-isopropylacrylamide)/indium tin oxide.

The experimental results are shown in Figure 5b. In the inactive state, the internal temperature of the building equipped with the PPI composite film increased more slowly under the same irradiation period. This behavior was attributed to the ITO particles embedded in the film, which effectively absorbed a portion of the incident infrared radiation and converted it into heat. Consequently, after 10 min of illumination, the PPI composite film reached its T_C and activated its thermal regulation function. This activation caused a clear divergence between the temperature profiles of the experimental and control samples. With continued illumination, the temperature of the control samples continued to rise, whereas that of the experimental samples stabilized, resulting in a maximum temperature difference of approximately 7 °C over the same illumination period. At this stage, the heating rates were 0.525 °C/min for the experimental samples and 0.16 °C/min for the control samples. These results highlight the significant potential of the fabricated hydrogel composite film for smart thermal management applications.

To assess durability, 50 consecutive heating–cooling cycles were performed, with the results presented in Figure 5c. The hydrogel composite film was encapsulated between two rigid glass substrates with a silicone sealing ring to minimize water loss and maintain stability under ambient conditions. Throughout the cycling test, the T_IR of the composite film remained stable. Additionally, ΔT_lum and ΔT_IR were continuously monitored during the cycling tests. As shown in Figure 5d, both ΔT_lum and ΔT_IR exhibited no significant changes after cycling. These findings demonstrate the excellent cycling stability of the smart window film.

4. Conclusion

In summary, a dual-responsive smart window film based on thermochromic PNIPAm was successfully developed and systematically characterized. The film exhibits large and broadband transmittance modulation, making it highly suitable for energy-efficient applications. Through precise control of PNIPAm microgel particle size, combined with the incorporation of ITO particles into the polymer matrix, the PPI composite film achieves a substantial enhancement inn ΔT_IR, increasing from 39.2% to 50.4% compared with the pure PNIPAm hydrogel. Furthermore, the film demonstrates a high T_lum of 50% in the activated state and a low T_C of 29 °C. Application of the PPI composite film is expected to reduce indoor temperatures by up to 7 °C, while maintaining excellent stability and scalability, highlighting its practical potential. This design strategy and the obtained results demonstrate that dynamic modulation of transmittance in smart window materials is an effective approach toward real-world applications. Overall, this work provides a promising and scalable platform for the development of next-generation smart windows, combining high optical performance with practical durability. By enabling effective thermal and optical control, it contributes a valuable design strategy for sustainable architecture and energy-efficient technologies.
